Engine

OIL LEVEL CHECK

Check the engine oil level every time you fill the gas tank. Make sure the oil level is between the F and L marks on the dipstick. The engine and oil must be warm and the vehicle parked on level ground to get an accurate reading. Also, allow a few minutes after turning off the engine for the oil to drain back into the pan before checking, or an inaccurate reading will result. Check the engine oil level as follows:

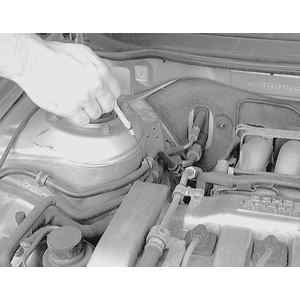

1. Open the hood and locate the engine oil dipstick.
2. If the engine is hot, you may want to wrap a rag around the dipstick handle before removing it.
3. Remove the dipstick and wipe it with a clean, lint-free rag, then reinsert it into the dipstick tube. Make sure it is inserted all the way or an inaccurate reading will result.

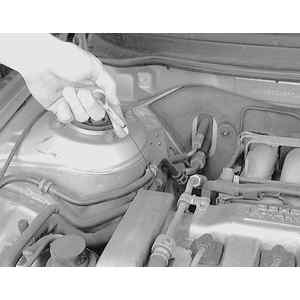

   Fig. 3: Reinsert the clean dipstick, ensuring it is fully seated, then remove it again

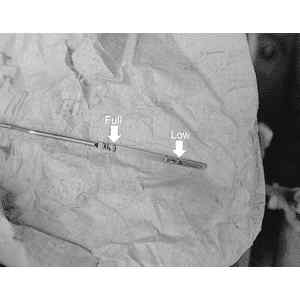

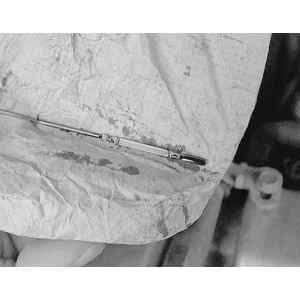

   Fig. 4: Read the level on the dipstick. If it is at or below the Low mark, add enough of the proper grade of oil to achieve a Full reading

4. Pull out the dipstick and note the oil level. It should be between the marks, as stated above.
5. If the oil level is below the lower mark, replace the dipstick and add fresh oil to bring the level within the proper range. Do not overfill.
6. Recheck the oil level and close the hood.
