INSPECTION

Distributor Cap

1. Wash the inside and outside surfaces of the cap with soap and water then dry it with compressed air.

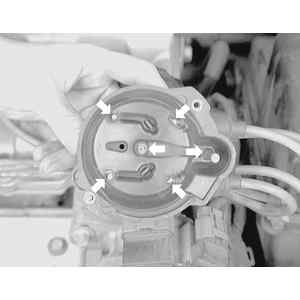

   Fig. 1: Thoroughly inspect the cap for signs of damage, wear or corrosion, especially the electrical terminals (arrows)

2. Inspect the cap for cracks, broken or worn carbon button, or carbon tracks. Also inspect the cap terminals for dirt and corrosion.
3. Replace the cap if any of the above conditions are observed.

Distributor Rotor

1. Wash the rotor with soap and water then dry with it compressed air.

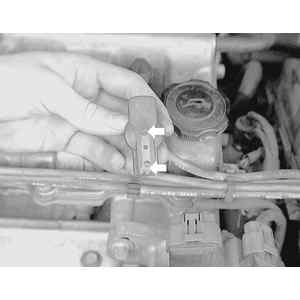

   Fig. 2: Inspect the rotor for signs of damage, wear or corrosion, especially the electrical terminals (arrows)

2. Inspect the rotor for cracks, carbon tracks, burns or damage to the blade or spring.
3. Replace the rotor if any of the above conditions are observed.
