LEVEL CHECK

1. Park the car on a level surface and apply the parking brake.
2. Remove the check plug from the side of the transfer carrier.

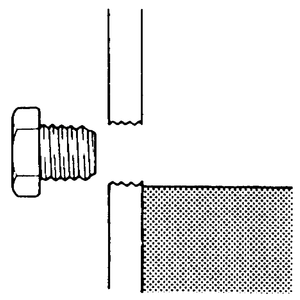

   Fig. 1: Remove the fluid level check plug from the side of the transfer case to inspect the fluid level. The level should be as shown

3. Check to see if oil level is at the bottom of the check plug hole.
4. If the fluid level is below the low mark, place a funnel into the plug hole and add the specified oil.
5. Install the check plug and tighten the plug to 28–43 ft. lbs. (39–58 Nm).
