REMOVAL & INSTALLATION

1. Detach the single wire harness connector from the oil pressure switch.
2. Remove the switch from the engine by turning it counterclockwise.

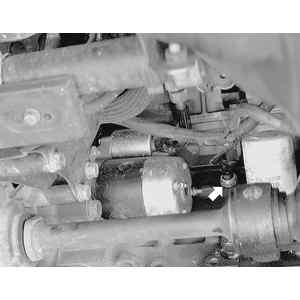

   Fig. 1: The oil pressure switch can usually be found near the oil filter

3. Installation is the reverse of the removal procedure. When installing the switch, count three threads up the switch then apply sealant from the third thread to the head of the switch. Tighten the switch to 8.7–13 ft. lbs. (12–17 Nm).

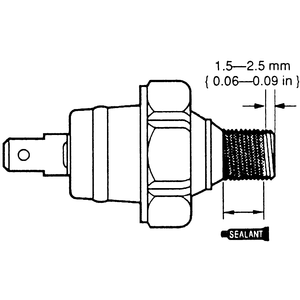

   Fig. 2: When installing the switch, count three threads up the switch then apply sealant from the third thread to the head of the switch
