The Exhaust Gas Recirculation (EGR) System introduces exhaust gas into the intake manifold which reduces the NOx content in the exhaust gas. The system utilizes a control valve, a modulator valve, the engine control unit, a solenoid valve, throttle sensor and a water thermosensor.

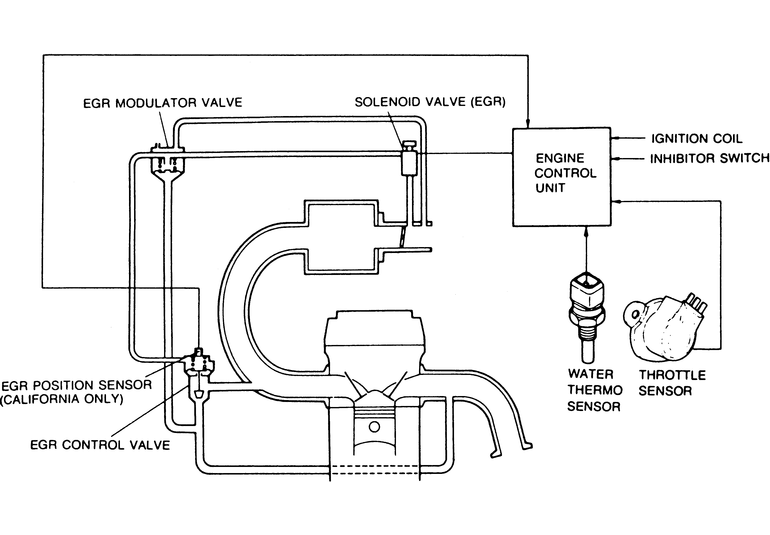

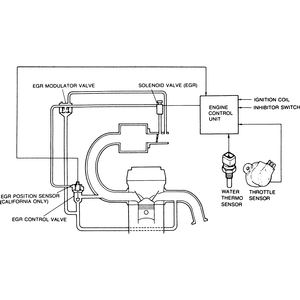

| Fig. 1: Typical EGR system schematic
|
