REMOVAL & INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the IAT sensor from the air cleaner housing or intake air pipe.

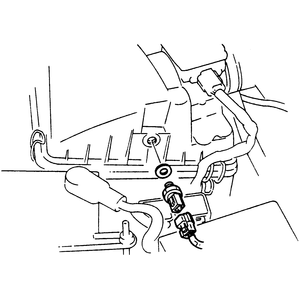

   Fig. 1: Exploded view of the IAT sensor mounting

   To install:

3. Install a new sealing washer to the thermosensor.
