REMOVAL & INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the necessary air intake components to access the throttle position sensor.
3. Detach the electrical wire harness plug from the sensor.

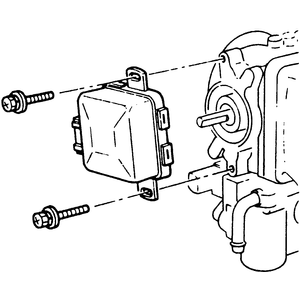

   Fig. 1: Exploded view of the typical throttle position sensor-to-throttle body mounting

4. Paint an alignment mark on the sensor housing to the throttle body.
5. Remove the sensor attaching bolts.
6. Remove the sensor from the throttle body.
7. Installation is the reverse of the removal procedure.
