TESTING

TESTING

NOTE: This test can also be performed with the sensor still installed in the motor, provided the engine is at the same temperatures as given for the specifications.

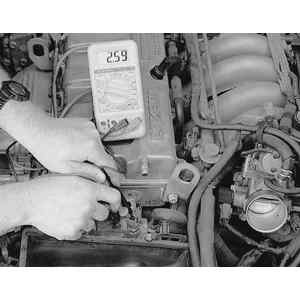

Fig. 1: To test the sensor while still installed in the engine, verify the temperature of the sensor then take the resistance reading

Fig. 2:The end of the temperature sensor can be submerged in cold or hot water to check the resistance

Remove the thermosensor.
Place the sensor in water with a thermometer and heat the water gradually.
Measure the resistance of the sensor and compare to the following values:
- -4°F (-20°C) — 14.6–17.8 kohms
- 68°F (20°C) — 2.2–2.7 kohms
- 104°F (40°C) — 1.0–1.3 kohms
- 140°F (60°C) — 0.50–0.65 kohms
- 176°F (80°C) — 0.29–0.35 kohms
