The individual gauges can be removed from the instrument cluster once the
cluster is removed from the vehicle.

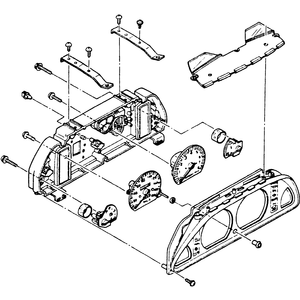

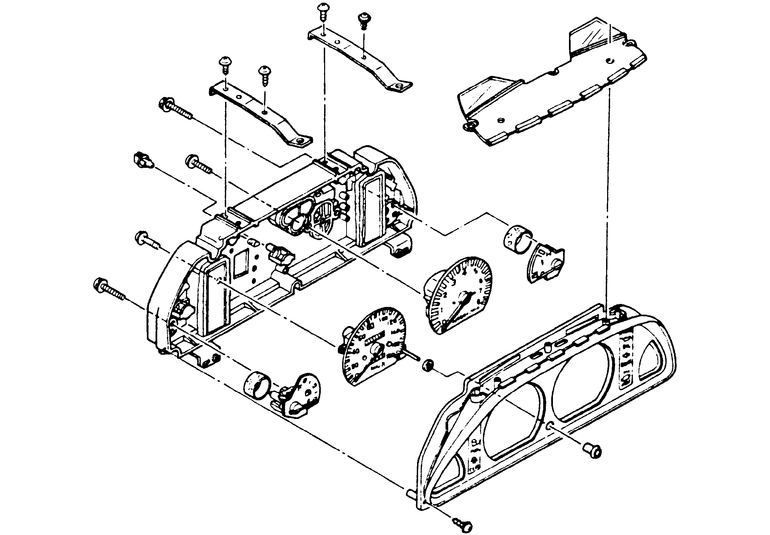

| Fig. 8: Exploded view of a typical instrument cluster
assembly
|
- Remove the instrument cluster lens and/or outer housing attaching screws
and separate them from the gauge housing.
- Remove the gauge attaching screws and pull the gauge from the housing.
- Installation is the reverse of the removal procedure. Ensure that the
gauge electrical contacts are properly seated or connected to the housing.
