REPLACEMENT

1. Disconnect the negative battery cable.
2. If replacing a relay at the main relay box, disconnect the electrical connector and slide the relay from its mounting bracket.
3. If replacing a relay at the interior relay box, simply unplug the relay.
4. Installation is the reverse of the removal procedure.

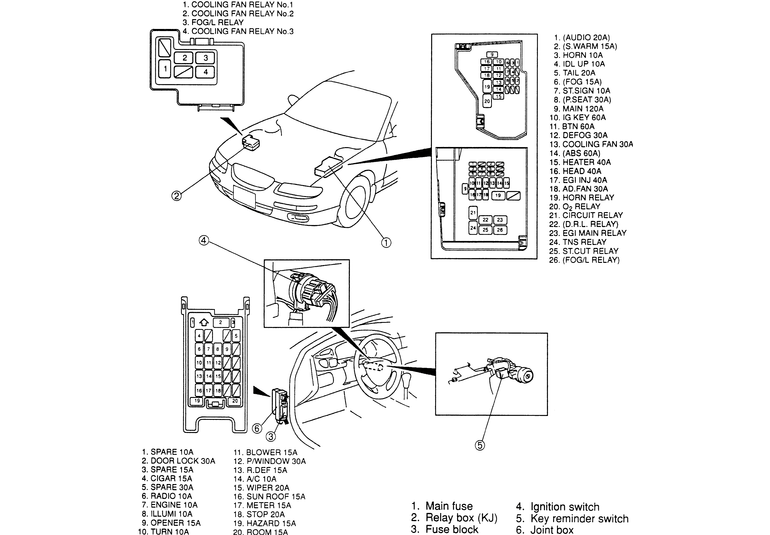

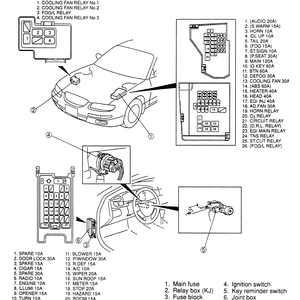

   Fig. 1: Typical fuse box and panel locations and configurations
