REPLACEMENT

CAUTION
Never replace a blown fuse with one of a higher rating. Severe damage to the vehicle, electrical harness and components, as well as personal injury or even death could occur.

Main Fuse Block

1. Disconnect the negative battery cable.

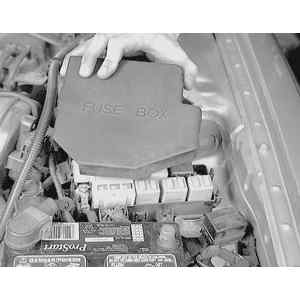

   Fig. 1: Remove the fuse box cover, located in the engine compartment, to access the main fuses for the vehicle

2. Unhook the lock tab from the main fuse block cover and open the cover.
3. Pull the fuse from the main fuse holder.
4. Installation is the reverse of the removal procedure.

Interior Fuse Panel

The interior fuses simply unplug from the fuse panel. Use the fuse puller tool provided with your car to remove fuses from the panel. The tool is located on the back of the interior fuse panel cover.
