Windshield Washer Fluid Reservoir

REMOVAL & INSTALLATION

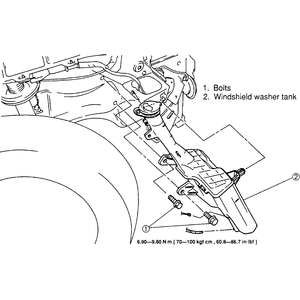

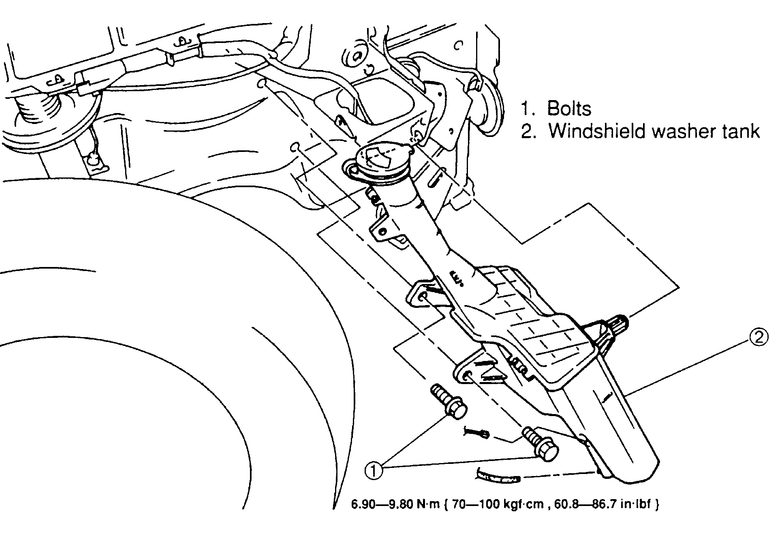

Front Washer Fluid Reservoir

1. Disconnect the negative battery cable.
2. If necessary, remove the radiator coolant reservoir.
3. Remove the washer reservoir retaining bolts.
4. Disconnect the electrical connector and the hose from the washer reservoir.
5. Remove the washer reservoir assembly.
6. Installation is the reverse of the removal procedure.

Rear Washer Fluid Reservoir

1. Disconnect the negative battery cable.
2. Remove the left-hand lower trunk side trim panel. Refer to Section 10.
3. Remove the refill cap and disengage the support. Remove the support from the refill hose.
4. Disconnect the electrical connector and remove the hose.
5. Remove the rear washer reservoir.
6. Installation is the reverse of the removal procedure.
