Windshield Washer Motor
REMOVAL & INSTALLATION

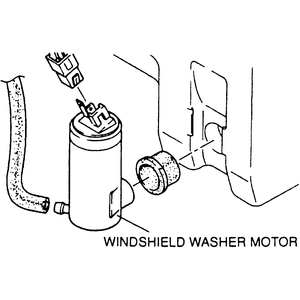

Fig. 1: Exploded view of a common washer fluid pump-to-reservoir mounting
Front Washer Fluid Motor
Disconnect the negative battery cable.
Remove the windshield washer fluid reservoir, as previously described.
Pry off the washer motor and pump assembly.
Installation is the reverse of the removal procedure.
Rear Washer Fluid Motor
Disconnect the negative battery cable.
Remove the rear window washer reservoir, as previously described.
Remove the motor and pump assembly.
Installation is the reverse of the removal procedure.
