The servos are hydraulic pistons and cylinders. They resemble the hydraulic actuators used on many other machines, such as bulldozers. Hydraulic fluid enters the cylinder, under pressure, and forces the piston to move to engage the band or clutches.

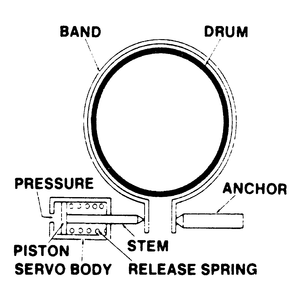

| Fig. 1:Servos, operated by pressure, are used to apply
or release the bands, to either hold the ring gear or allow it to rotate
|
The accumulators are used to cushion the engagement of the servos. The transaxle fluid must pass through the accumulator on the way to the servo. The accumulator housing contains a thin piston which is sprung away from the discharge passage of the accumulator. When fluid passes through the accumulator on the way to the servo, it must move the piston against spring pressure, and this action smoothes out the action of the servo.
