ABS Relay

REMOVAL AND INSTALLATION

1. Remove the underhood fuse box cover.
2. Remove the diagnosis connector attaching bolt and move the connector to the side.
3. Remove the underhood fuse panel mounting nuts and move the fuse panel to the side.
4. Remove the ABS relay mounting bolt and unplug the relay electrical connector. Remove the relay.
5. Installation is the reverse of the removal procedure.

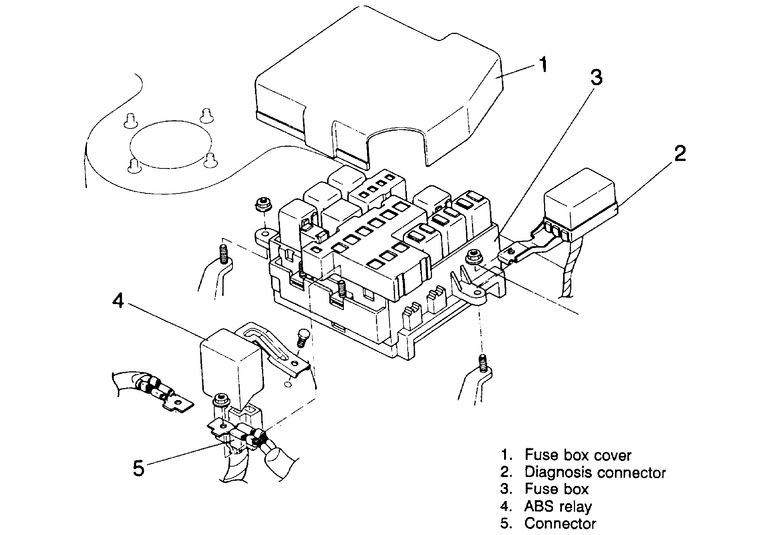

   Fig. 1: The ABS relay is located in the underhood fuse box
