Brake Disc (Rotor)

REMOVAL & INSTALLATION

1. Raise the vehicle and support safely. Remove appropriate wheel assembly.
2. Remove the caliper and brake pads. Support the caliper out of the way using wire.
3. The rotor on most models is held to the hub by 2 small threaded screws. Remove screws, if equipped, and pull off the rotor.
4. Installation is the reverse of the removal process.

   Fig. 1: Remove the caliper and support it out of the way with wire

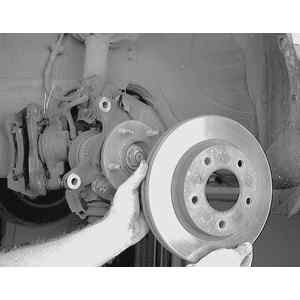

   Fig. 2: The rotor can now be pulled from the hub
