Control Unit

REMOVAL & INSTALLATION

  1. Disconnect the negative battery cable.
  2. Unplug the electrical connectors from the ABS control unit.
  3. Remove the ABS control unit mounting bolts and remove the ABS control unit.
  4. Installation is the reverse of the removal procedure.

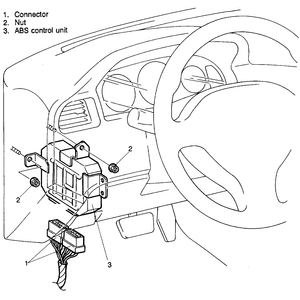

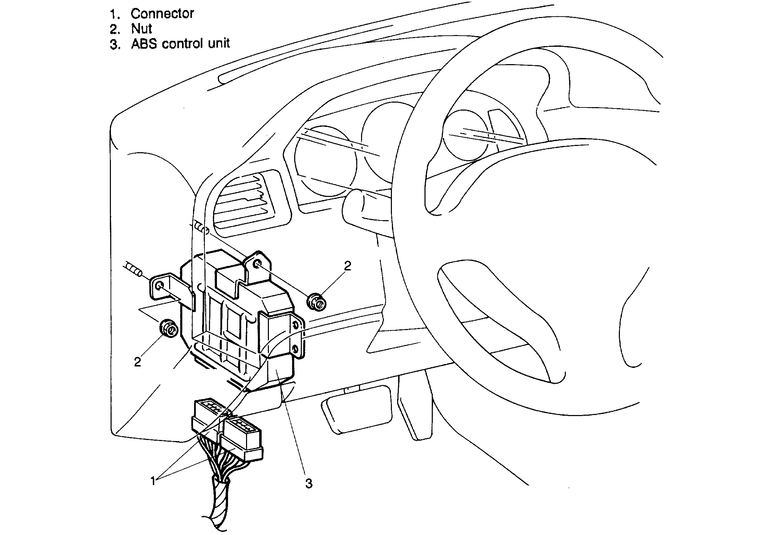

    Fig. 1: ABS control unit 1992–93 models shown, others similar
