Hood

REMOVAL & INSTALLATION

1. Open the hood and support it securely. Mark the hinge location on the hood. If so equipped, disconnect the windshield washer hose from its retaining clamp.

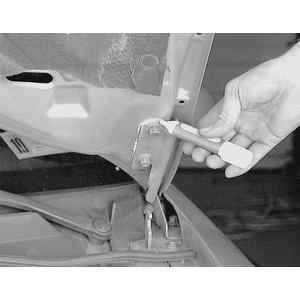

   Fig. 2: Matchmark the position of the hood before removing the retaining bolts

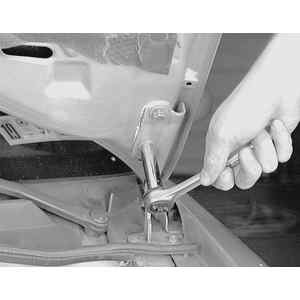

   Fig. 3: Have an assistant secure the hood, then remove the retaining bolts

2. Have an assistant hold the hood in the up position. Remove the hood support and remove the hinge-to-hood bolts.
3. Remove the hood from the vehicle.

   To install:

4. Position the hood against the hinges, using the marks made previously on the hood to help with alignment.
5. Have an assistant hold the hood. Install the hinge-to-hood bolts, the hood support and the hood support bolts. If so equipped, install the washer hose.
6. Tighten all bolts securely and check the hood for proper alignment.
