Trunk Lid

REMOVAL & INSTALLATION

1. Open and support the trunk lid securely.
2. Mark the position of the trunk lid hinge in relation to the trunk lid. Disconnect the trunk lid stay from its mounting bracket, if so equipped.
3. Remove the two bolts attaching the hinge to the trunk lid.
4. Remove the trunk lid from the vehicle.

   To install:

5. Align the marks on the trunk lid with the hinges.
6. Install the hinge-to-trunk lid bolts.
7. Tighten the trunk lid bolts and adjust if necessary.

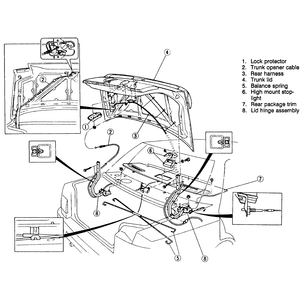

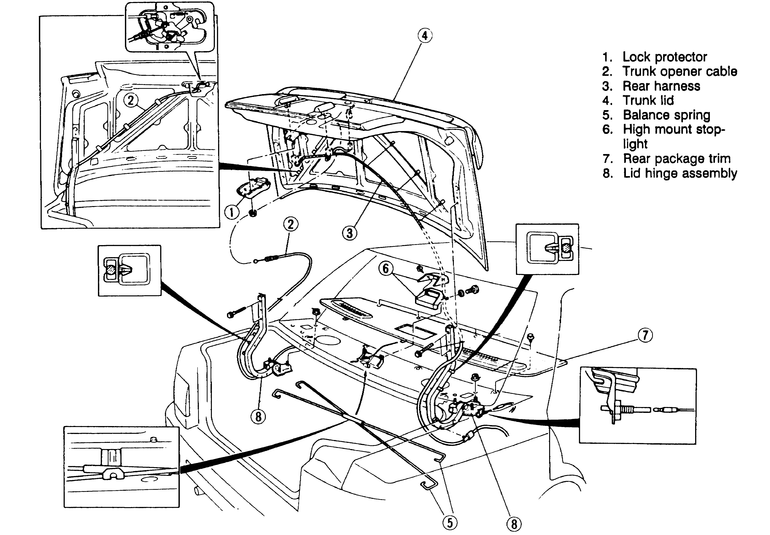

   Fig. 1: Exploded view of the trunk lid mounting
