Brake Shoes

REMOVAL AND INSTALLATION

1. Raise and safely support the vehicle. Remove the wheel and tire assembly and the brake drum.
2. Pull backward on the adjusting lever cable to disengage the adjusting lever from the adjusting screw. Move the outboard side of the adjusting screw upward and back off the pivot nut as far as it will go.
3. Pull the adjusting lever, cable and automatic adjuster spring down and toward the rear to unhook the pivot hook from the large hole in the secondary shoe web. Do not pry the pivot hook from the hole.
4. Remove the automatic adjuster spring and adjusting lever.
5. Remove the secondary shoe-to-anchor spring using a suitable brake spring removal/installation tool. Using the tool, remove the primary shoe-to-anchor spring and unhook the cable anchor. Remove the anchor pin plate, if equipped.
6. Remove the cable guide from the secondary shoe.

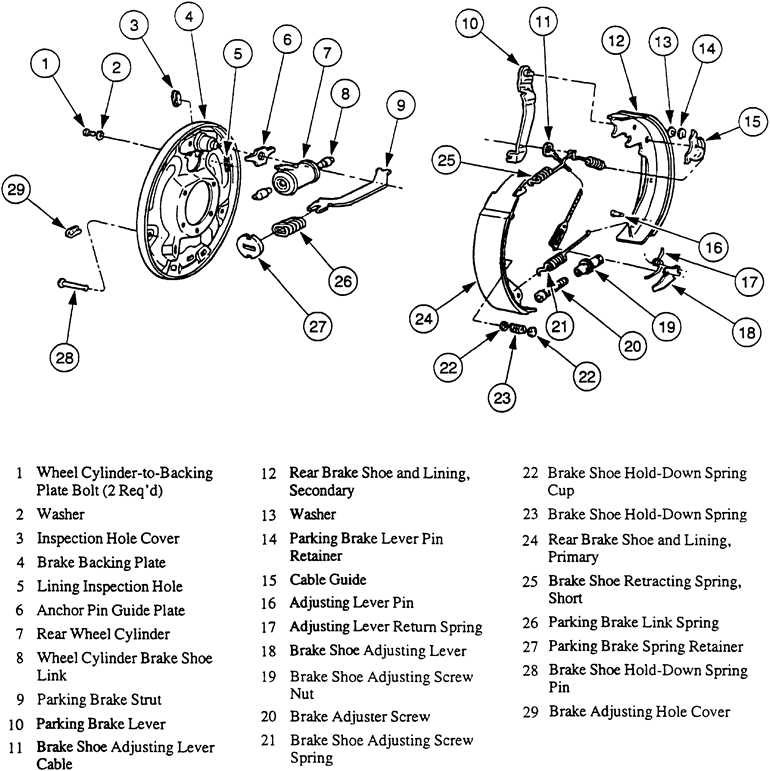

   Fig. 1: Exploded view of the rear brake shoes and components — 1997 B-Series Pick-Up

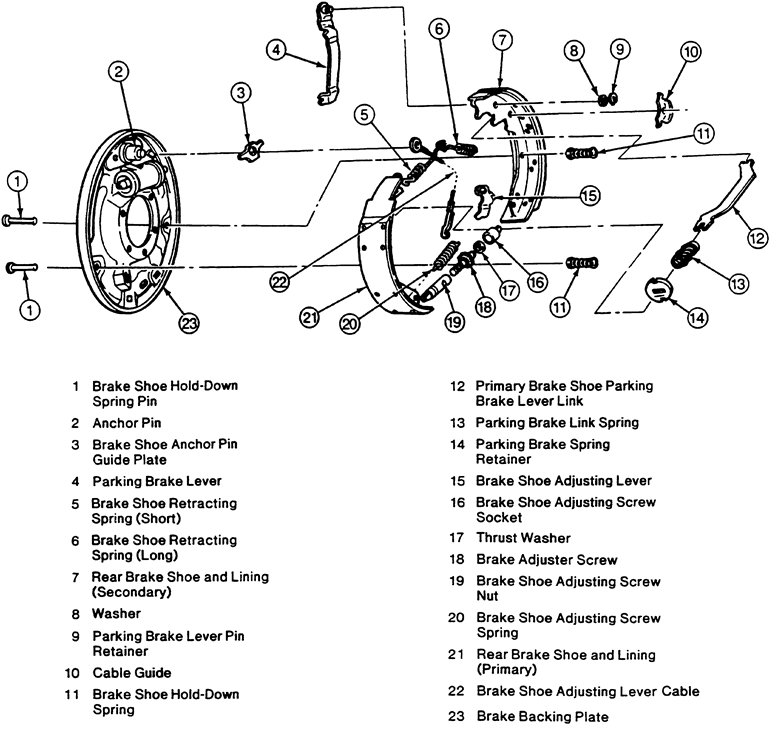

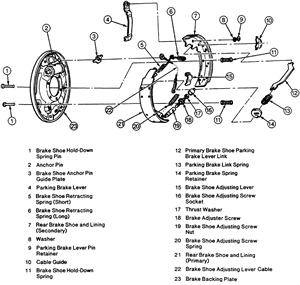

   Fig. 2: Exploded view of the rear brake shoes and components — 1998–01 B-Series Pick-Up

7. Remove the shoe hold-down springs, shoes, adjusting screw, pivot nut and socket. Note the color and position of each hold-down spring so they can be reassembled in the same position.
8. Remove the parking brake link and spring. Disconnect the parking brake cable from the parking brake lever.
9. Remove the secondary brake shoe. On 9 in. (22.8cm) rear brakes, remove the parking brake lever from the shoe. On 10 in. (25.4cm) rear brakes, remove the retainer clip and spring washer and remove the parking brake lever.

   To install:

10. Clean the backing plate ledge pads and sand lightly. Apply a light coating of high temperature lithium grease to the points where the brake shoes touch the backing plate. Lubricate the adjusting cable eye and the anchor pin area.
11. Install the parking brake lever on the secondary shoe. On 10 in. (25.4cm) brakes, secure with the spring washer and retaining clip.
12. Position the brake shoes on the backing plate and install the hold-down spring pins, springs and cups. Install the parking brake link, spring and washer. Connect the parking brake cable to the parking brake lever.
13. Install the anchor pin plate, if equipped, and place the cable anchor over the anchor pin with the crimped side toward the backing plate.
14. Install the primary shoe-to-anchor spring using the brake spring removal/installation tool.
15. Install the cable guide on the secondary shoe with the flanged hole fitted into the hole in the secondary shoe. Thread the cable around the cable guide groove.

    NOTE: Make sure the cable is positioned in the groove and not between the guide and shoe web.

16. Install the secondary shoe-to-anchor (long) spring.

    NOTE: Make sure the cable end is not cocked or binding on the anchor pin when installed. All parts should be flat on the anchor pin.

17. Apply high temperature lithium grease to the threads and the socket end of the adjusting screw. Turn the adjusting screw into the adjusting pivot nut to the end of the threads and then loosen, ¹⁄₂ turn.
18. Place the adjusting socket on the screw and install the assembly between the shoe ends with the adjusting screw nearest the secondary shoe.

    NOTE: Be sure to install the adjusting screw on the same side of the vehicle from which it came. To prevent incorrect installation, the socket end of each adjusting screw is stamped with R or L, to indicate installation on the right or left side of the vehicle. The adjusting pivot nuts have lines machined around the body of the nut, 2 lines indicating the right side nut and 1 line indicating the left side nut.

19. Hook the cable hook into the hole in the adjusting lever from the outboard plate side. The adjusting levers are also stamped with an R or L to indicate right or left side installation.
20. Place the hooked end of the adjuster spring in the large hole in the primary shoe web and connect the loop end of the spring to the adjuster lever hole.
21. Pull the adjuster lever, cable and automatic adjuster spring down toward the rear to engage the pivot hook in the large hole in the secondary shoe web.
22. After installation, check the action of the adjuster by pulling the section of the cable between the cable guide and the adjusting lever toward the secondary shoe web far enough to lift the lever past a tooth on the adjusting screw wheel. The lever should snap into position behind the next tooth and releasing the cable should cause the adjuster spring to return the lever to its original position. This return action will turn the adjusting screw 1 tooth.
23. If pulling the cable does not produce the action described previously, or if lever action is sluggish instead of positive and sharp, check the position of the lever on the adjusting screw toothed wheel. With the brake in a vertical position, anchor at the top, the lever should contact the adjusting wheel 1 tooth above the centerline of the adjusting screw. If the contact point is below the centerline, the lever will not lock on the adjusting screw wheel teeth and the screw will not turn, since the lever is actuated by the cable.
24. Adjust the brake shoes using either a brake adjustment gauge or manually with the drums installed.
25. Install the wheels, and lower the vehicle.
